The LT-Line II Busbar Trunking System from Tai Sin is designed in compliance with IEC 61439-6 standards and is certified by KEMA KEUR. It comes with a full type test certification according to IEC 61439.
The LT-Line II Busbar Trunking System offers a complete range of products to meet global market demands, supporting 3P3W, 3P4W, and 3P5W systems for both main power supply and distribution applications.

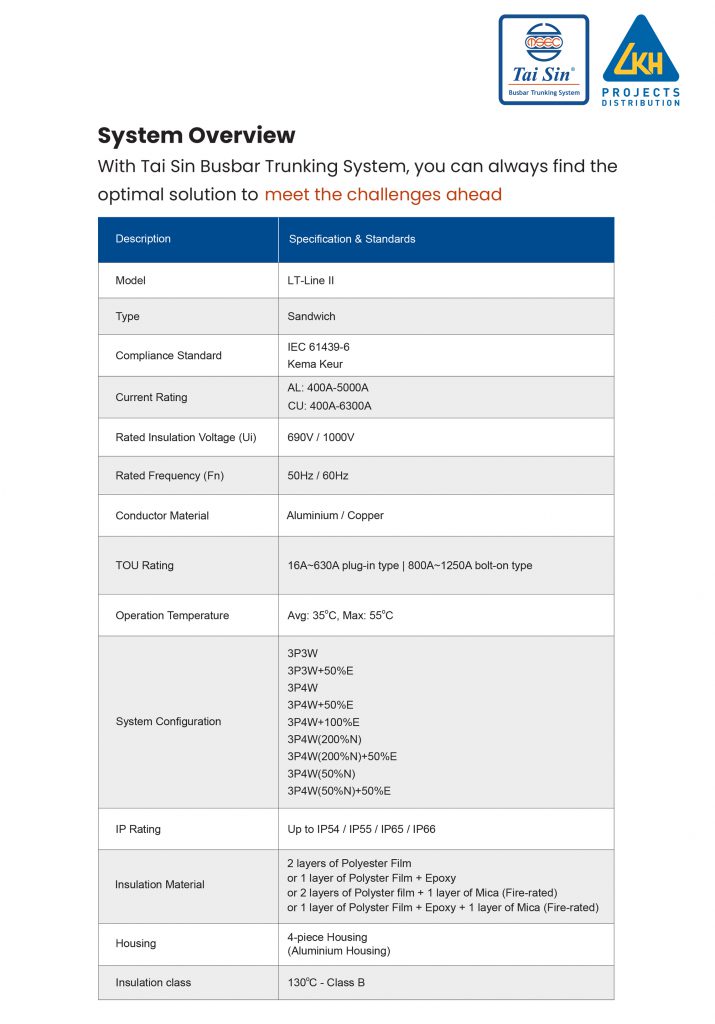

It supports current ratings from 400A to 5000A for aluminium conductors and 400A to 6300A for copper conductors, with an operating voltage of up to 690V (insulation voltage up to 1000V). The system offers protection levels of up to IP66 and supports frequencies of 50~60Hz.

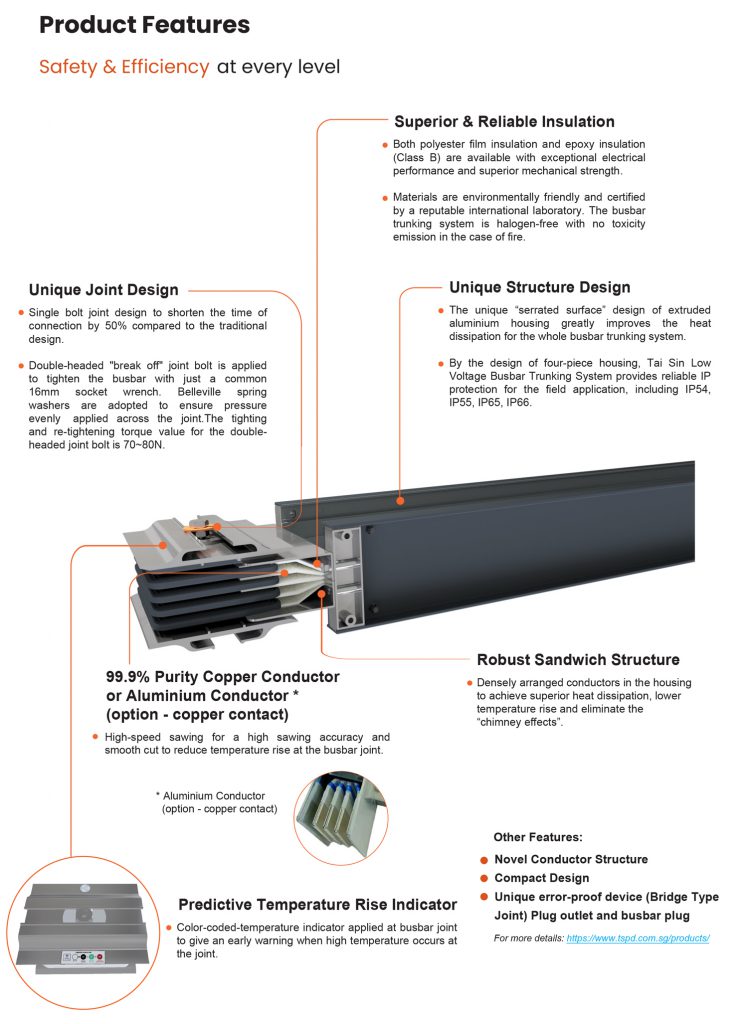

The Tai Sin LT-Line II Low Voltage Busbar Trunking System is a reliable and high-performance power distribution system, featuring a sandwich-type construction and superior functionality. It provides a safe and robust power supply solution with high electrical efficiency, low voltage drop, and excellent mechanical strength.
With a four-piece extruded aluminium housing, Tai Sin’s LT-Line II Busbar Trunking System overcomes weight limitations, making it one of the lightest systems in the industry while offering high installation flexibility. The full aluminium alloy casing and use of low magnetic permeability materials help reduce energy loss caused by hysteresis in the power distribution system.
