Busbar Accessories
FLEXIBLE LINK
We provide customised flexible links that absorbs vibrations caused by operations and movements inside machines. Also protects against movements and expansions in machines and equipment.
Busbar Accessories ( Flexible Link )

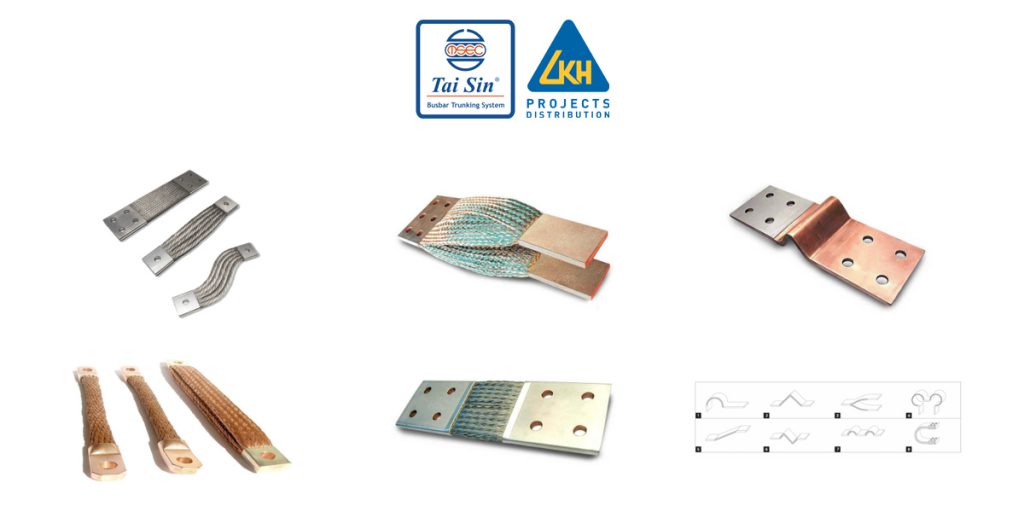

HIGH FLEXIBLE AIR COOLED COPPER CONNECTORS
Highly flexible connectors are manufactured by braided tapes with bare, tin or silver-coated copper wires diameter of 0.10/0.20 mm. Standard flexibles are non-insulated but on request, it is possible to deliver the connectors with insulation tubes. Standard lengths are 300 mm and drilling patterns are specified, however, the designs lengths and drilling patterns are changeable to suit your fitment. The contact areas are assembled with solderless pressed bare copper connectors which on request are tin or silver coated. The advantage of the solderless pressing process is that only material of same analysis and same conductivity is being connected which is not the case where tin or welding is additionally used. Standard manufactured connectors have a width of 20-300mm. Possible cross-sections are 25-6000 sq mm or above.
Copper Busbar
